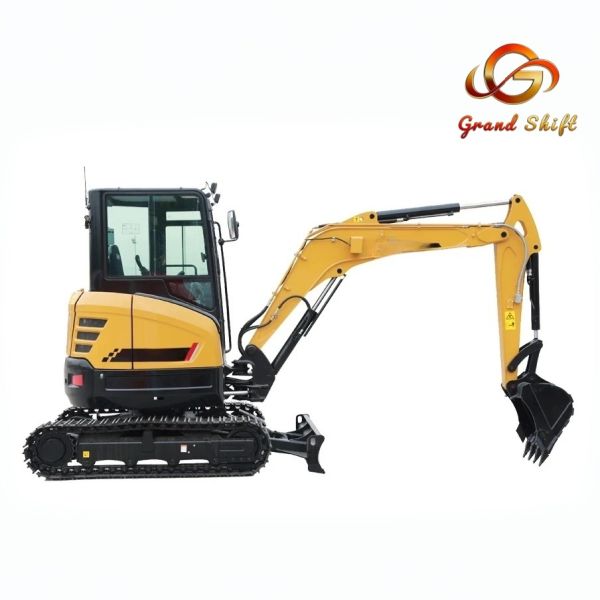

SANY SY35U 3.5Ton Rubber Track Mini Excavator High Torque for Ditching Grading with CE

Brand Name : SANY

Model Number : SY35U

Certification : CE, ISO 9001, ISO 14001, EPA, EAC, SGS, TUV

Place of Origin : China

MOQ : 1 unit (customizable according to user needs )

Price : 6,000.00-15,000.00 USD (Contact us for a detailed quote)

Supply Ability : 30-50 Units 30 days

Delivery Time : 30-45 days (in stock for conventional models, customized models need to be negotiated separately

Packaging Details : Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation

Contact Now

Basic Parameters
Parameter Specification
Operating Weight 3780 kg
Standard Bucket Capacity 0.12 m³
Rated Power 20.2 kW / 2200 rpm
Max. Torque 104.5 Nm / 1320 rpm
Displacement 1.642 L
Performance
Parameter Specification
Bucket Digging Force 30.4 kN
Arm Digging Force 18.2 kN
Swing Speed 10 rpm
Travel Speed 4.2 km/h (High) / 2.4 km/h (Low)
Gradeability 58%
Ground Pressure 33-35 kPa
Dimensions
Parameter Specification
Overall Length (Transport) 4905 mm
Overall Width (Transport/Operation) 1720 mm
Overall Height (Transport) 2555 mm
Tail Swing Radius 860 mm
Track Length on Ground 1645 mm
Track Width 300 mm
Working Range
Parameter Specification
Max. Digging Height 4865 mm
Max. Dumping Height 3445 mm
Max. Digging Depth 3115 mm
Max. Digging Radius 5480 mm
Min. Swing Radius 2465 mm
Fluid Capacities
Parameter Specification
Fuel Tank 50 L
Hydraulic Oil Tank 40 L
Engine Oil 6 L
Coolant (Antifreeze) 3.8 L
Travel Reduction Gear Oil 2 * 0.7 L
